Finger-Joint Storage Design

We were tasked with designing a ‘‘simple’’ box that will contain our electronics for the remaining of the semester. I took this as an opportunity to practice full parametric design practices. In particular, I rigorously tested that modified my defined parameters yielded valid box designs that can easily be exported and cut on the laser cutter. Below I have included various configurations and the resulting box.

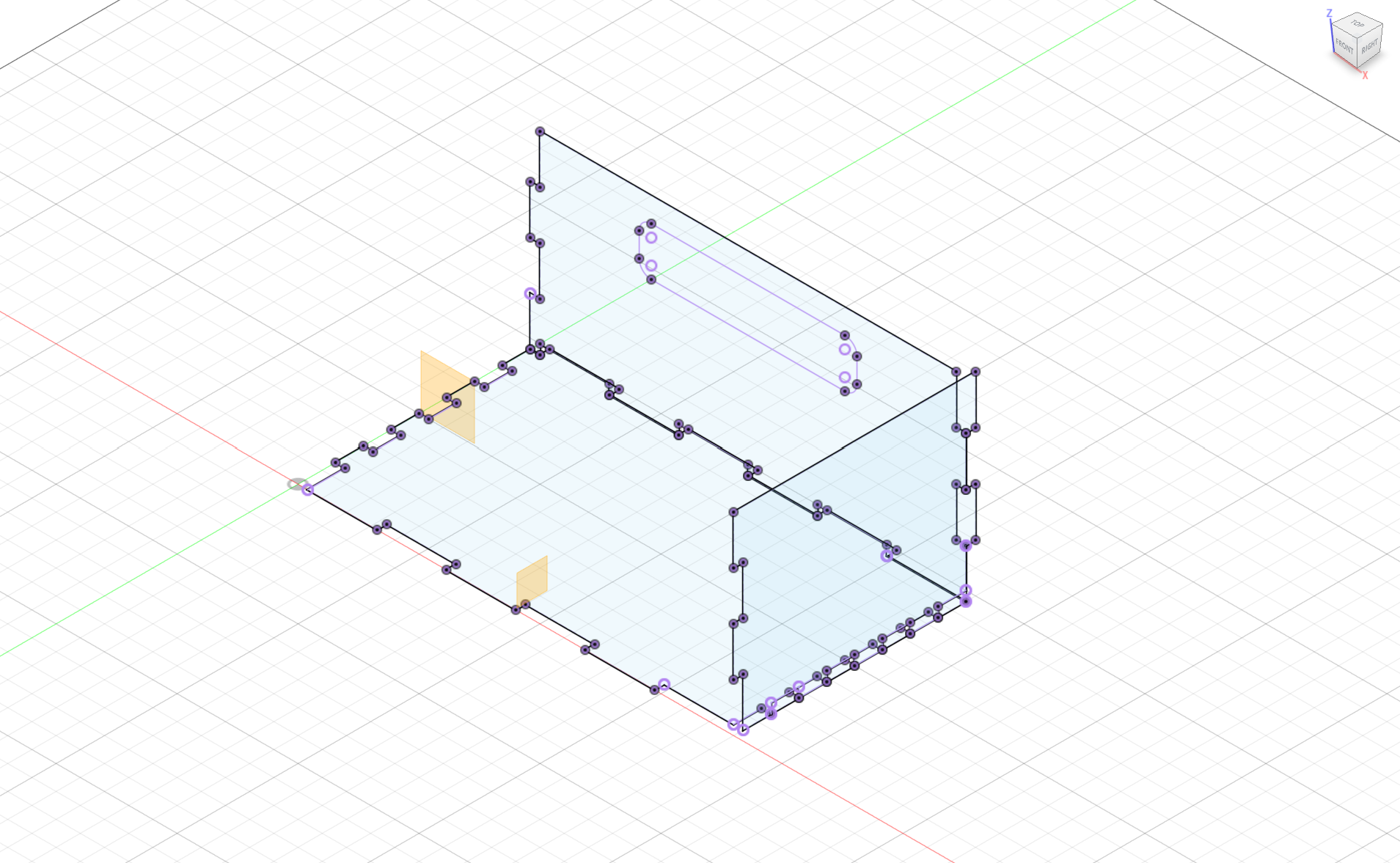

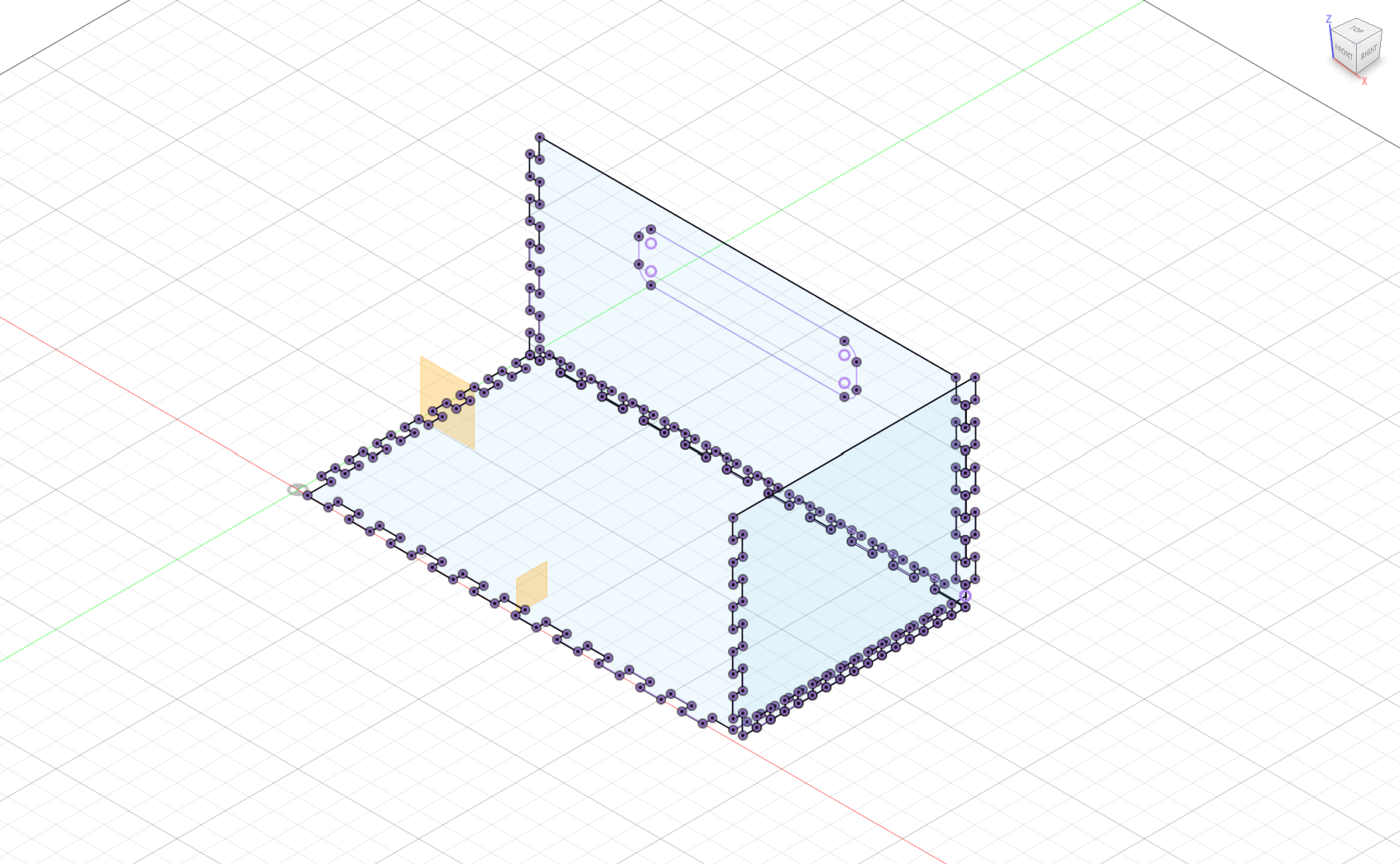

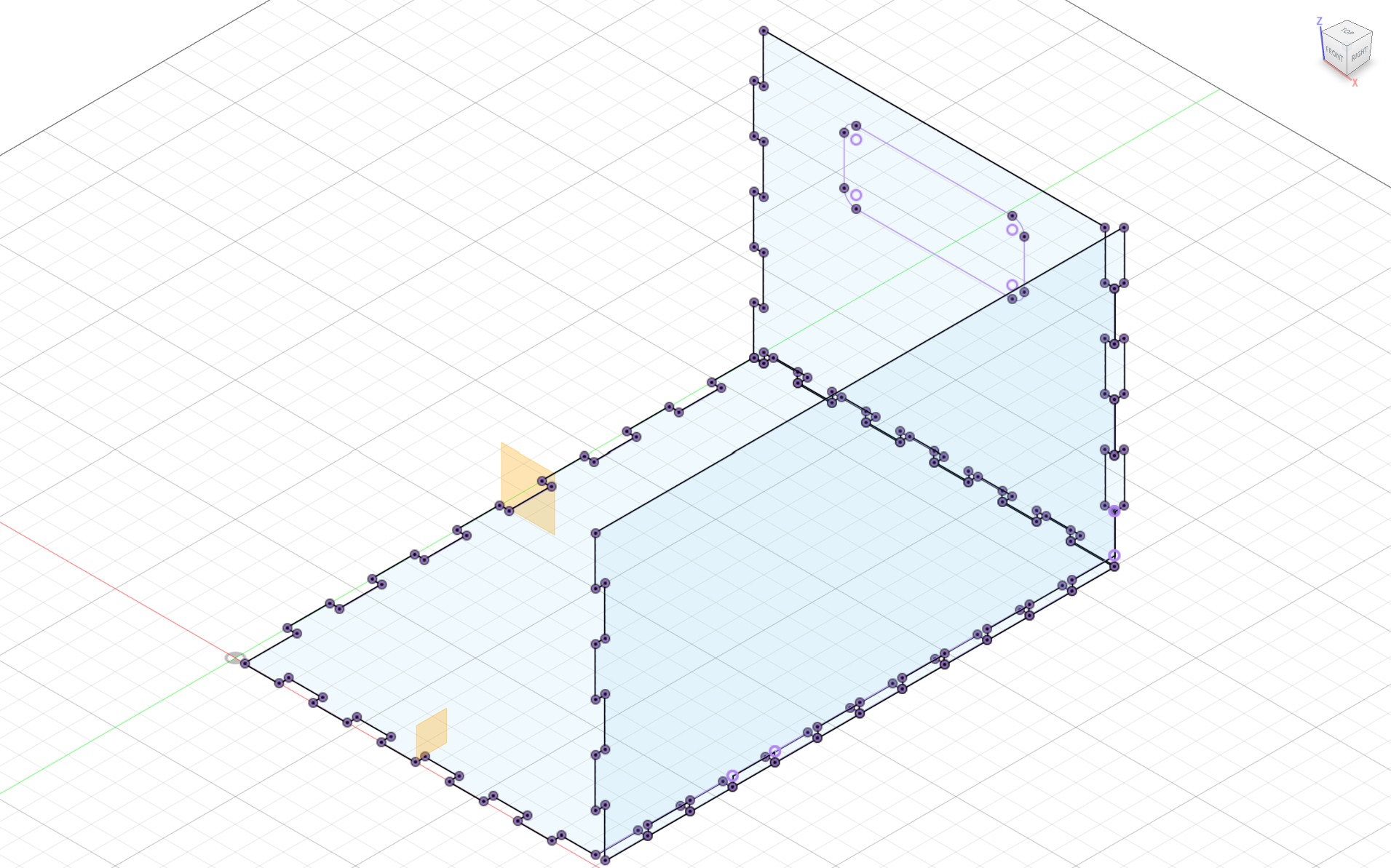

Parameterized Model 1 Parameterized Model 2 Parameterized Model 3

Parameters	Values
Box Length	200 mm
Box Width	150 mm
Box Height	120 mm
Width Number of Fingers	5
Length Number of Fingers	6
Width Number of Fingers	3

Parameters	Values
Box Length	100 mm
Box Width	180 mm
Box Height	80 mm
Width Number of Fingers	10
Length Number of Fingers	8
Height Number of Fingers	5

Parameters	Values
Box Length	100 mm
Box Width	180 mm
Box Height	80 mm
Width Number of Fingers	3
Length Number of Fingers	4
Height Number of Fingers	2

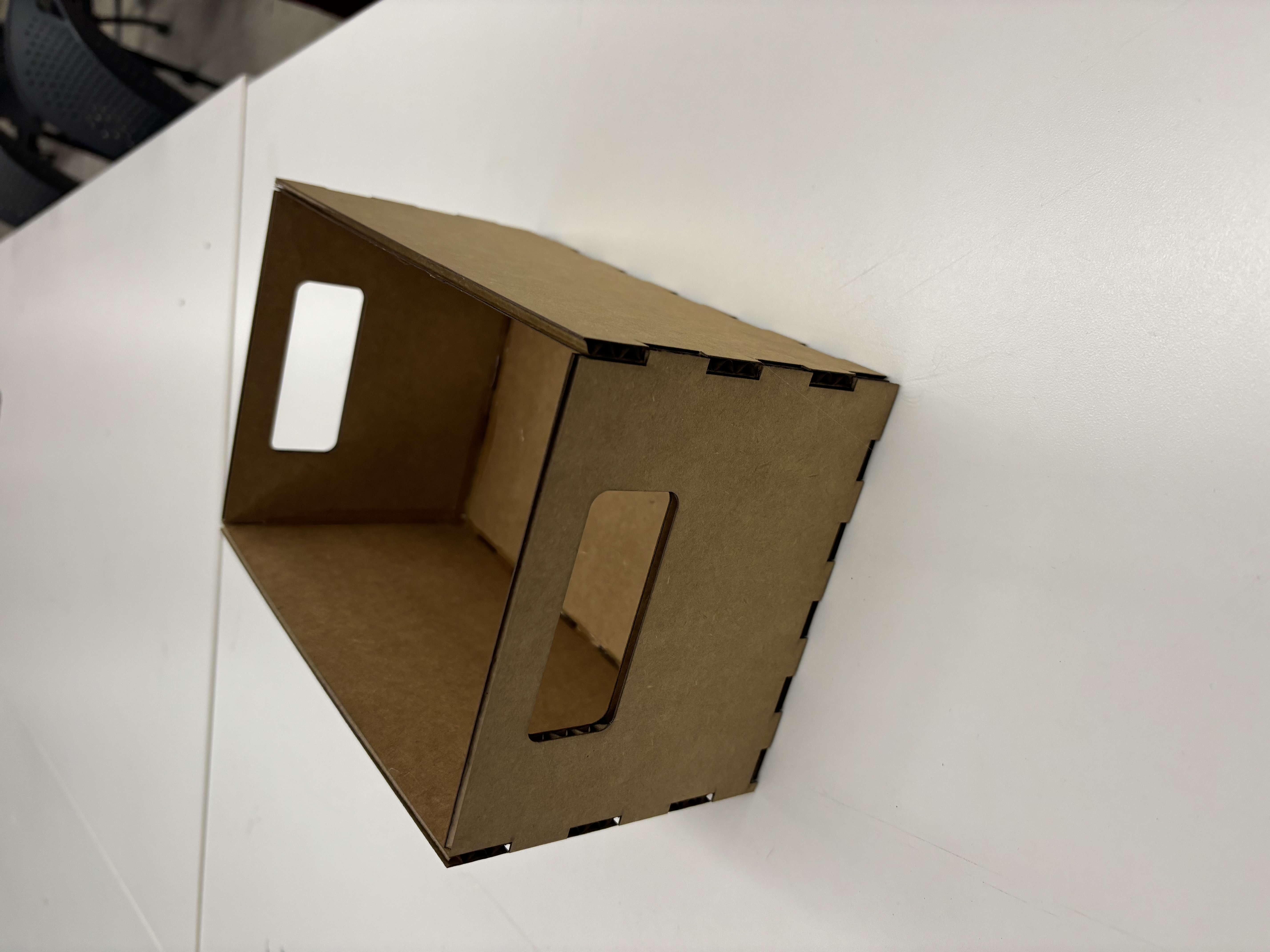

I finally cut the box described by the parameters in tab 1. The resulting box is shown below.

Fusion 360 Tutorial

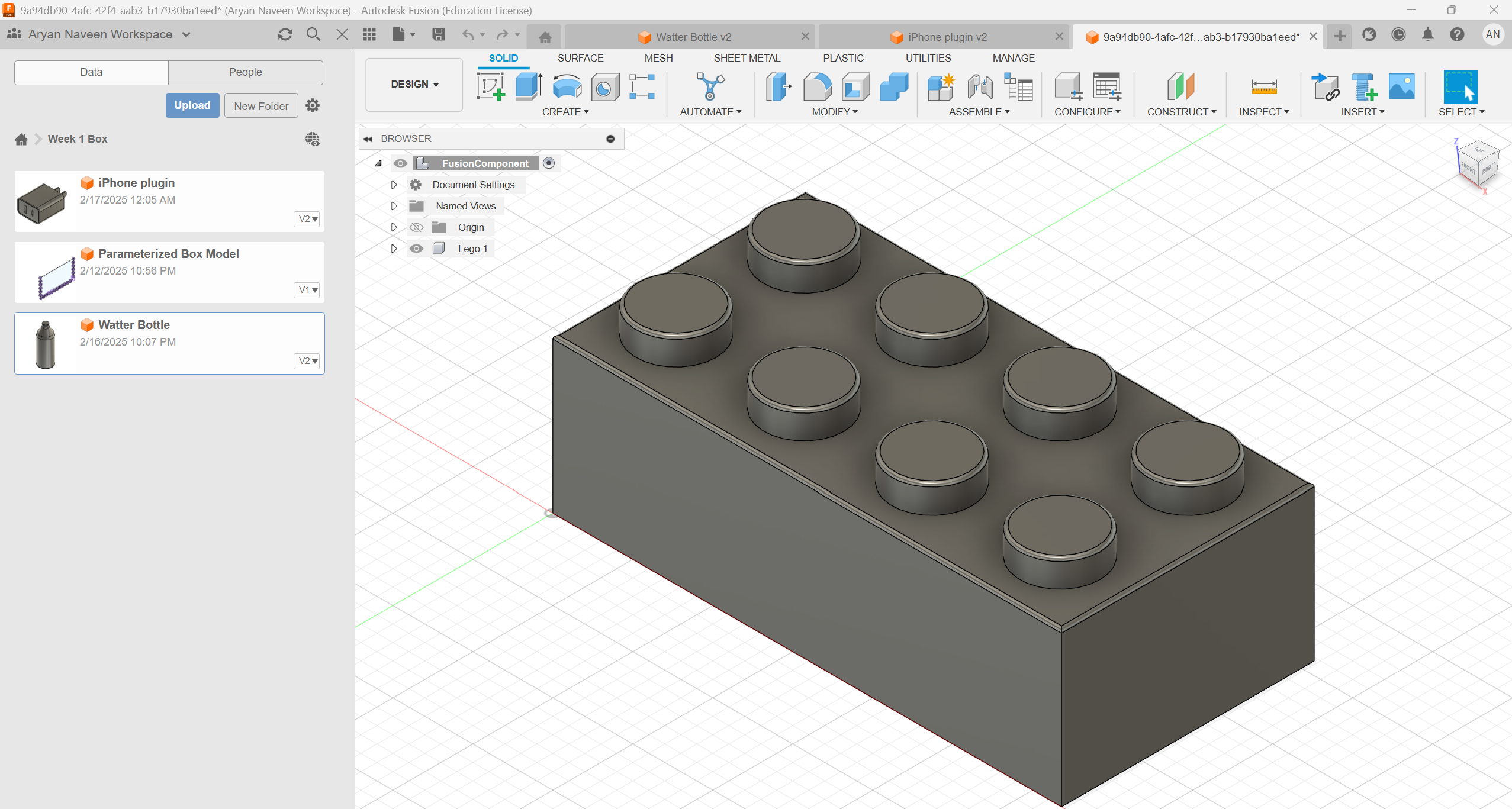

Followed the LEGO tutorial on Fusion 360 and created the following models Visit Google.

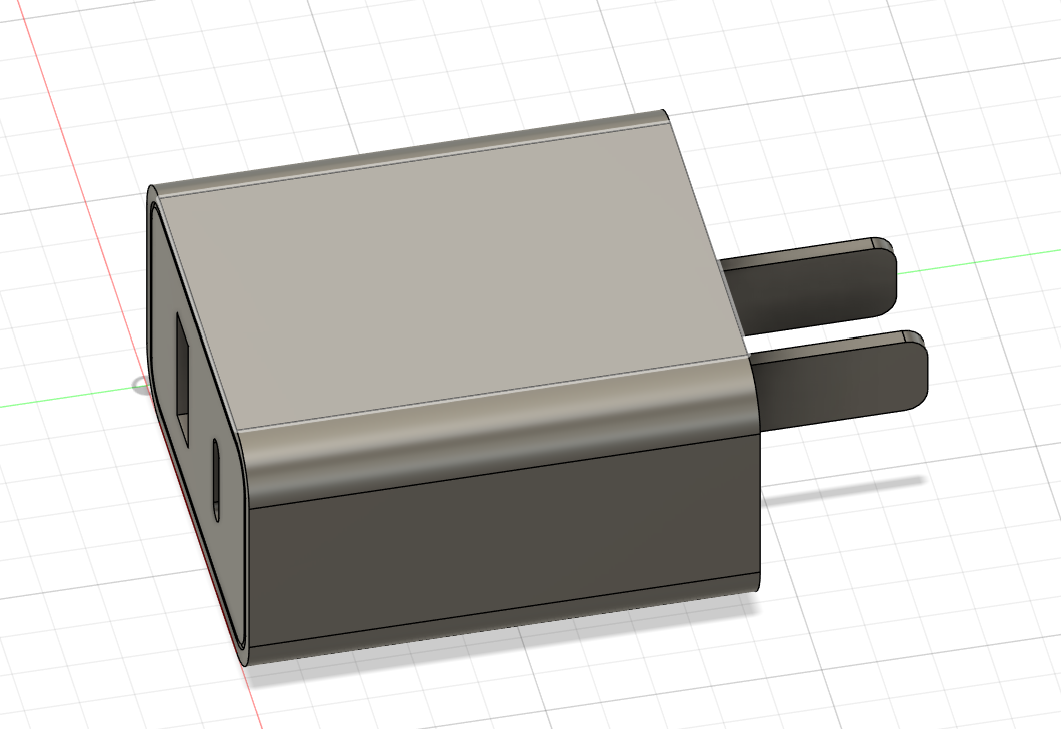

Household Object CAD Practice

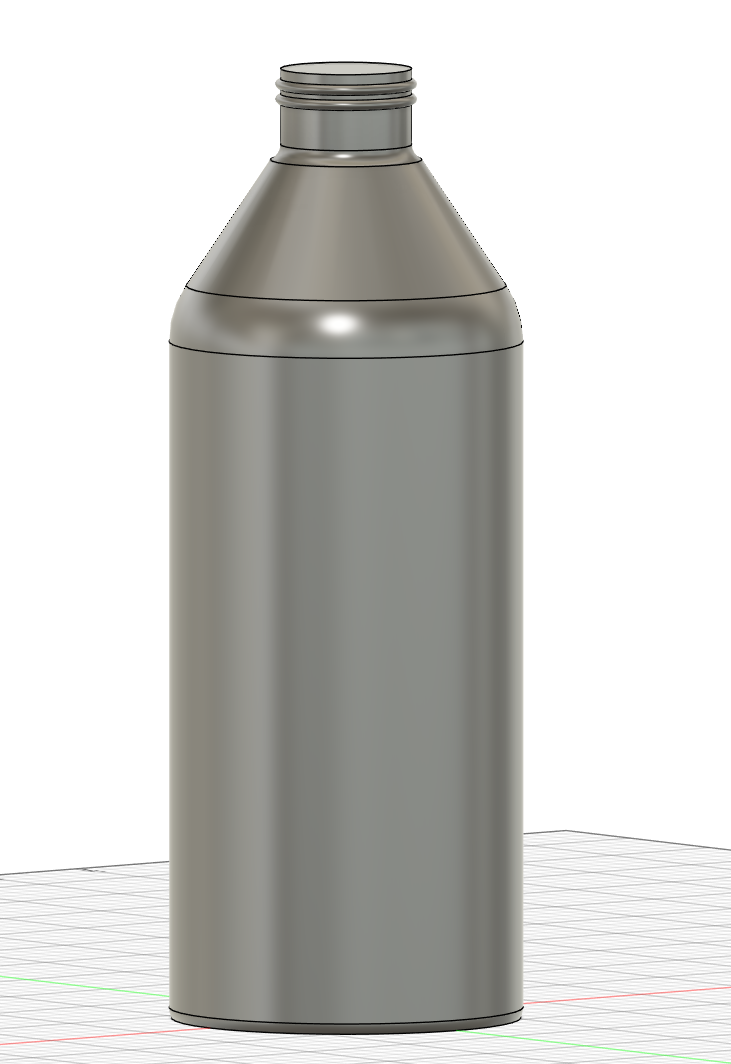

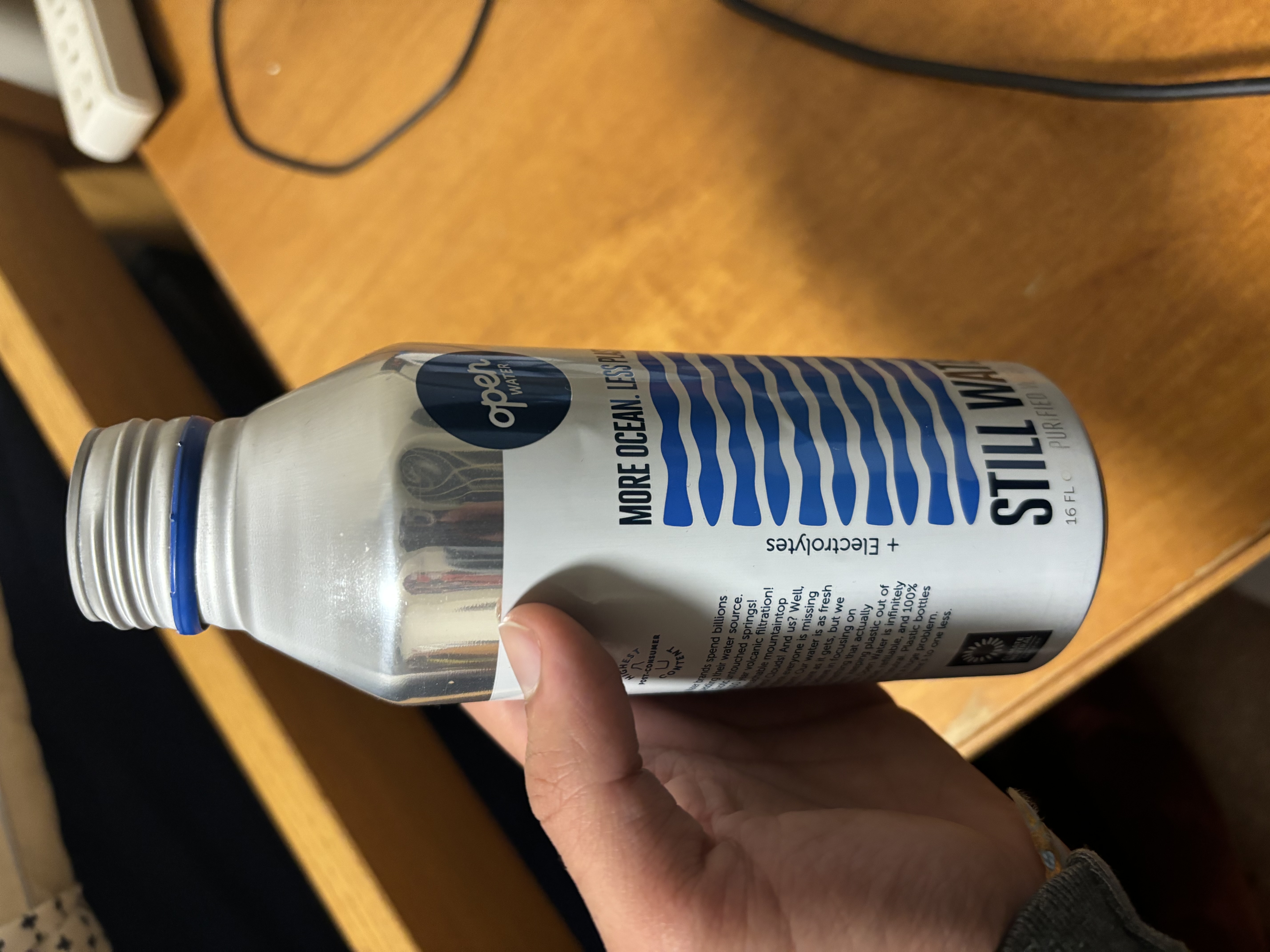

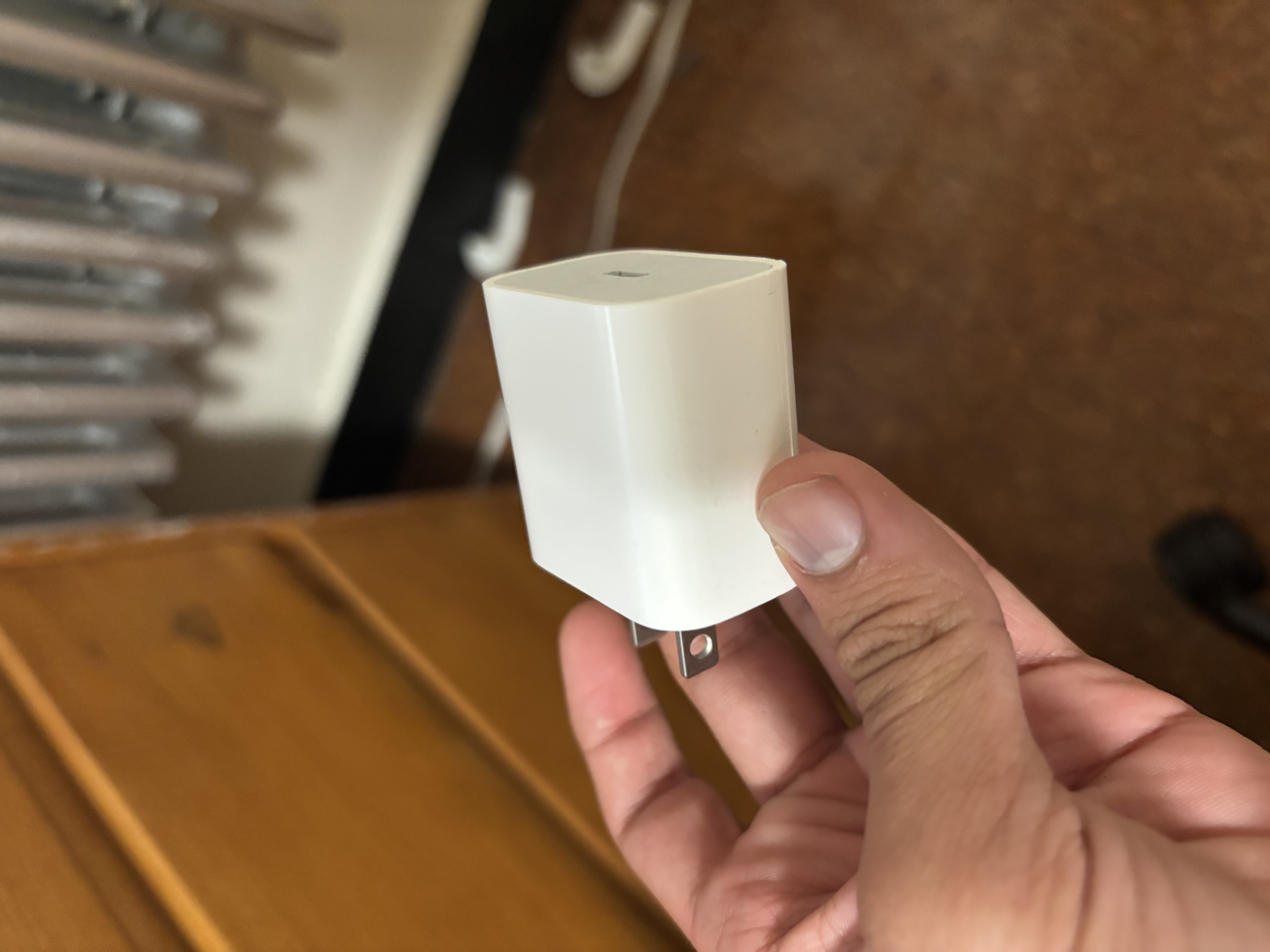

Reference Objects	Fusion 360 Objects
